TowFLEXX 3 (TF3) – up to 9,000 kg MTOW

Product form

TowFLEXX 3 (TF3) – Remote-controlled aircraft tug for aircraft up to 9,000 kg MTOW The TF3 is the most compact...

Free pickup in our shop(s)

€20.047,34 Incl. VAT

  • Please tell us which aircraft types are to be moved with this tug?

    Description

    TowFLEXX 3 (TF3) – Remote-controlled aircraft tug for aircraft up to 9,000 kg MTOW

    The TF3 is the most compact remote-controlled aircraft tug. Aircraft can be attached in a few seconds and maneuvered with precision. The freely rotating 360° turntable holds the nose wheel in position while the TF3 moves around it. The hydraulic-free drive reduces maintenance requirements to a minimum.

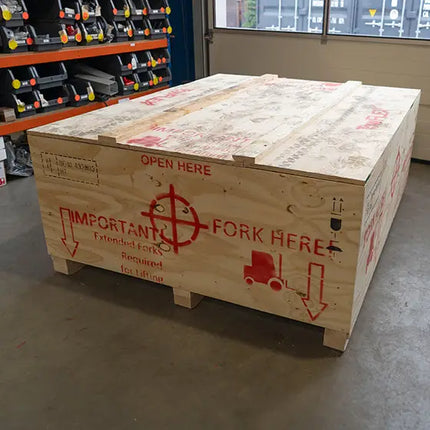

    A sturdy wooden crate worth around €600 is included to ensure safe, smooth transport.

    Features

    • Drive power up to 7.7 kW
    • Wheel torque up to 2.1 kNm
    • Towing force up to 9.1 kN
    • 24 V drive system
    • High-performance DC motor control
    • Multifunctional radio remote control
    • Intelligent charger – can remain connected for days
    • Front and rear LED lighting

    Technical Data

    • Max. aircraft weight (MTOW): 9,000 kg / 20,000 lbs
    • Dimensions: 1200 × 1600 × 450 mm / 47.24“ × 62.99“ × 17.71“
    • Weight: 350 kg / 770 lbs

    Scope of Delivery

    • Multifunctional radio remote control
    • Nose wheel attachment suitable for the aircraft type
    • Built-in intelligent charger with charging cable – for a standard wall socket in many countries worldwide (100–240 V), with power plug for Europe (Type C/F), Great Britain (Type G), or USA/Canada (Type A/B)
    • Operating instructions
    • Wooden transport crate (value approx. €600)

    Compatible Aircraft (Excerpt)

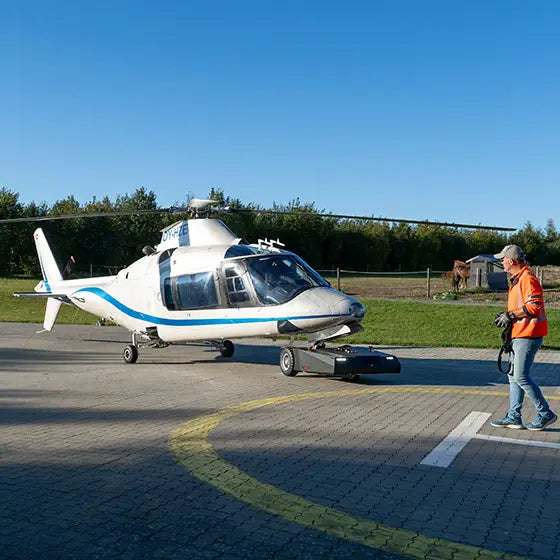

    • Agusta AW109
    • Beechcraft KingAir C90GT
    • Beechjet 400
    • Cessna Citation Mustang
    • Cessna 525 Citation M2
    • Cessna Caravan
    • Cessna Citation XLS
    • Cessna CJ2
    • Cessna T310Q
    • Cirrus SF50 Vision Jet
    • Cirrus SR22 (special version without turntable)
    • Daher TBM (various models)
    • Diamond DA42
    • Embraer Phenom 300
    • General Dynamics MQ9 Reaper drone

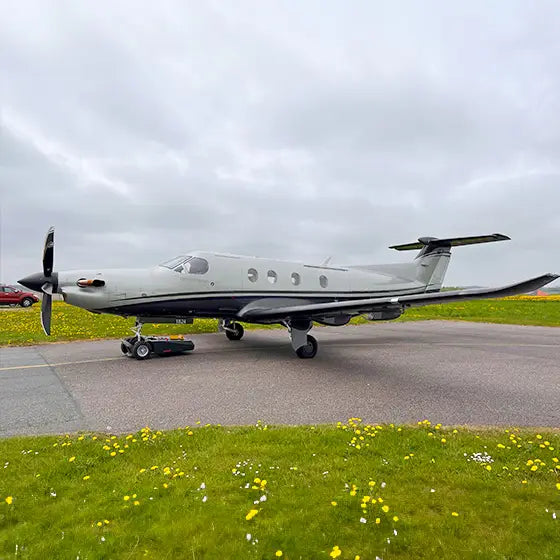

    • Pilatus PC-12
    • Pilatus PC-24
    • Piper M600
    • Piper Meridian
    • Piper Mirage
    • Piper Saratoga
    • Piper Seneca
    • Quest Kodiak 100
    • Socata TB20
    • Tecnam P2012 Traveler
    • All piston-engine aircraft without wheel fairings
    • Several single-rotor helicopters

    Power meets precision – the TF3

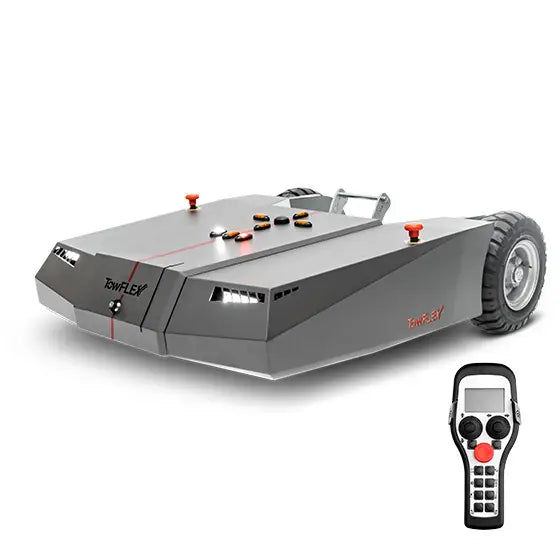

    The TF3 is a modern, remote-controlled aircraft tug, designed for aircraft with a maximum takeoff weight of up to 9,000 kg.
    It offers a perfect combination of power, efficiency, and ease of use – ideal for airports, hangar operators, maintenance facilities, and private owners who value precision and safety.


    Innovative technology for maximum control

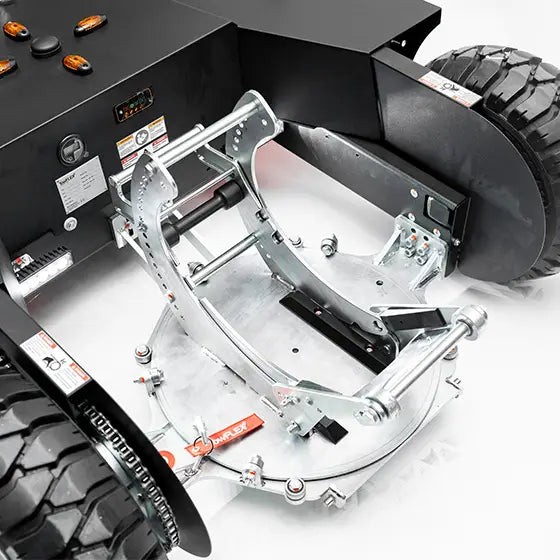

    360° turntable with nose wheel attachment
    The TF3 features a mechanical 360° turntable, which keeps the nose wheel straight in the direction of travel during towing. This reliably prevents misalignment or damage to the landing gear.

    Flexible compatibility
    Thanks to various attachment options, the TF3 can be adapted to different nose wheel sizes – for broad compatibility with many aircraft models.


    Powerful. Environmentally friendly. Economical.

    The TF3 is powered by two high-performance lead-gel batteries (24 V / 4.7 kWh), enabling a range of approx. 3–5 km at full load.
    Charging is conveniently done via a standard wall socket – the intelligent charger automatically switches off as soon as the batteries are fully charged.
    The fully electric design ensures emission-free operation, low operating costs, and minimal maintenance.


    Robustly built – for daily use

    The TF3 is made of high-quality materials and designed for intensive continuous use on various surfaces.
    Its solid rubber tires offer excellent traction, while the heavy-duty swivel caster at the front enables turning on the spot – ideal for narrow hangars or precise positioning.


    Applications & Target audience

    The TF3 is particularly suitable for:

    • Private owners with one or two aircraft

    • Flight schools and maintenance organizations (MROs)

    • FBOs, hangar operators, and business aviation companies

    It offers a cost-effective, reliable, and safe solution for towing aircraft – without the need for additional tow bars or ground personnel.


    Why the TF3

    • Remote-controlled & precisely steerable – full control with maximum safety

    • Robust, low-maintenance design – no hydraulics, minimal maintenance

    • Efficient & emission-free – low operating costs, no fuel consumption

    • Made in Germany – developed and manufactured in Visbek, Lower Saxony

    • Global support – serviced worldwide through the TowFLEXX service network


    Increase the safety and efficiency of your ground operations with the TF3 – the leading remote-controlled aircraft tug in its class.
    Available now in the TowFLEXX online shop – state-of-the-art towing technology for demanding operators worldwide.

    Pros and cons

    • Battery-powered – equipped with long-lasting lead-gel batteries for reliable
    • emission-free operation
      Purely electromechanical drive – completely hydraulic-free
    • therefore particularly low-maintenance
    • clean in operation.
      Radio-controlled – precise control with optimal view of the aircraft during the towing process
      Solid rubber tires – ensure maximum traction
    • secure grip on various surfaces.
    • Less flexible with many different aircraft types – ideally suited for operators with a stable aircraft fleet.
    What's included?
    • aircraft tug
    • Radio remote control with charger
    • A nose wheel image (based on the aircraft types mentioned)
    • Integrated charger
    Delivery time and availability of the TowFLEXX TF3

    The average delivery time for the TowFLEXX TF3 is currently about 4 weeks . Please note that the actual delivery time may vary slightly depending on the destination , current availability , and transport conditions . During periods of high demand or in the event of supply shortages of individual components, longer waiting times may occasionally occur.

    Generally, we will coordinate the shipping details with you individually once your tractor is finished, in order to ensure a smooth process and the fastest possible delivery.

    TowFLEXX TF3 compatibility

    The TowFLEXX TF3 is suitable for a wide range of aircraft within its weight class and offers an efficient, safe, and flexible solution for daily towing operations. The only exceptions are aircraft with dual nose wheels or nose wheel fairings , as these designs can impair the safe handling of the landing gear.

    If your aircraft is not listed in the compatibility list above, this does not automatically mean that it cannot be moved with the TowFLEXX TF3. Our experienced team will gladly check individually whether your aircraft or helicopter is compatible and which model from the TowFLEXX aircraft tug range is the best fit.

    Simply contact us via the contact form or by phone – we will help you find the right electric aircraft tug for your needs.

    Can different aircraft be towed with the same device?

    The TowFLEXX TF3 is equipped with a robust turntable featuring a crescent-shaped mount . This mount is available in various versions, each designed for different nose wheel sizes . Some versions are designed to accommodate multiple wheel sizes – however, their flexibility is not comparable to that of the larger TowFLEXX models .

    The TF3 aircraft tug 's mounting bracket can be replaced if necessary. This only requires loosening a few screws. While this process is straightforward, it is not intended for quick changes between two towing operations.

    How often and for how long does the tractor need to be charged?

    The battery life of a TowFLEXX aircraft tug depends on several factors. As a guideline , the TF3 battery achieves a range of approximately 3 to 5 kilometers under full load . Actual performance and range can vary depending on operating conditions – inclines , uneven or soft surfaces , and low winter temperatures reduce battery performance. In warm summer temperatures, the battery typically exhibits somewhat greater endurance.

    As soon as the battery level becomes critical , this is noticeable through a clear change in behavior: The tractor only moves one to two meters, stops, has to be restarted, and repeats this pattern. This behavior is a clear indication that the battery should be charged immediately to prevent deep discharge and potential battery damage .

    A nearly empty battery requires approximately 6 hours to charge . The included charger switches off automatically once fully charged, allowing the battery to remain plugged in for extended periods – for example, overnight or over the weekend.

    Recharging after each towing operation is not necessary, especially for short distances – such as from the hangar to the apron and back. However, we recommend fully charging the battery at least once a month to maintain its lifespan and performance in the long term.
